Products & Packaging Solutions

Browse our catalog like a brochure page.

All Products

PT Yoewono Jaya Mandiri

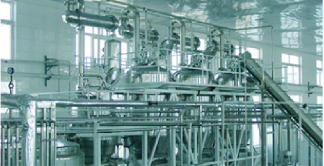

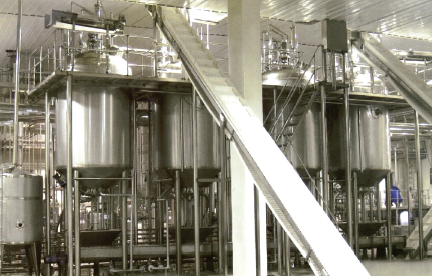

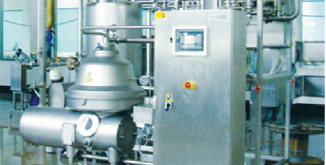

Extraction System

萃取系统

Product Features

Tea extraction is designed to efficiently obtain active components from tea while preserving color, aroma, and taste, and preventing cloudiness caused by excessive dissolution.

The system applies fractional extraction: low-temperature extraction protects aroma and heat-sensitive components, while high-temperature extraction enhances flavor extraction. By precisely controlling extraction parameters, optimal quality and stability of the tea concentrate are achieved.

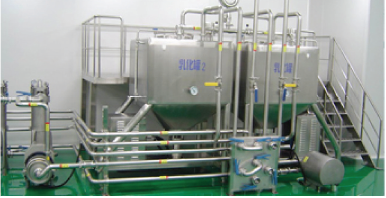

Soluble Sugar System

溶糖系统

Product Features

Sugar is one of the major components of fruit juice, sugar dissolves in water single syrup process called soluble sugar.

Soluble sugar system usually includes: sugar dissolve powder conveying, powdered sugar, syrup sterilization, syrup, filtering and cooling, such as syrup storage unit. Special circumstances, the need for degassing treatment syrup.

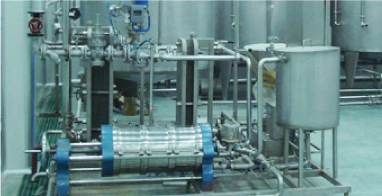

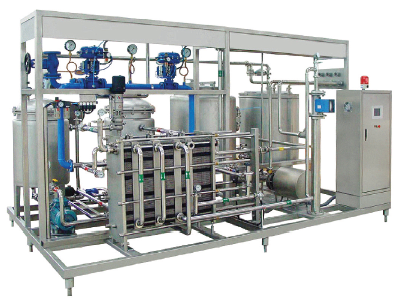

Plate Sterilizer

板式灭菌器

Product Features

This whole set of machines is mainly used for pasteurism, ultra-pasteurism and ultra-high temperature sterilization of liquid substances such as milk, juice, tea drinks, beers and healthy drinks.

After the sterilization and cooling, those substances can be kept for a longer time. To meet different requirements of sterilization, warm and cooling technique, a mix of single, double or multi-segment system can be designed.

With compact structure, it takes relatively small space. With flexible working flow, it is easy to operate and maintain. CIP system can also be added to it at the request of customer.

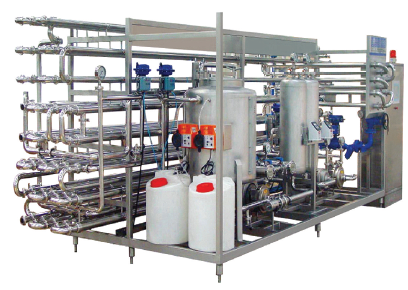

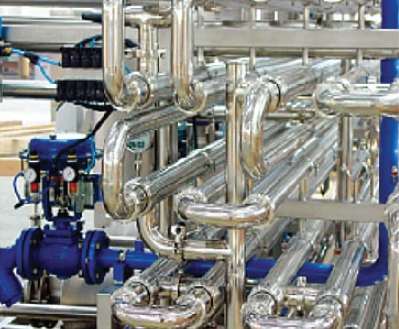

Pipe Sterilizer

管式灭菌器

Product Features

The whole set of tube-style sterilization machine is especially used for one-off sterilization of liquid substances such as milk, juice and drinks to make them last for a longer period through sterilization and cooling.

In accordance with different requirements for heating, sterilization, heat preservation and cooling, the flow can be designed in combination, with various safety measures and high degree of automation for precise and stable control.

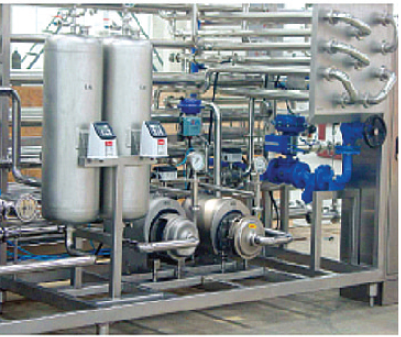

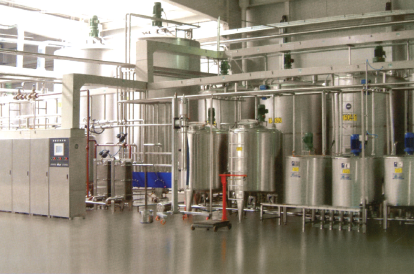

Pipeline & Preparation System

管道及调配系统

Product Features

The pipeline and preparation system is designed for efficient liquid transfer, mixing, and formulation in beverage production lines.

It integrates storage tanks, pipelines, pumps, and control units to ensure stable operation, accurate preparation, and hygienic processing.

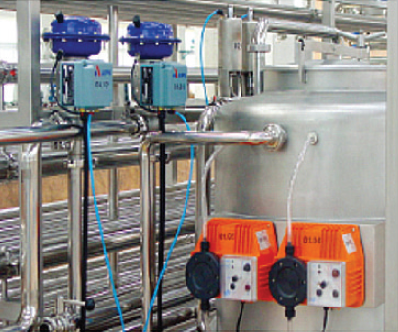

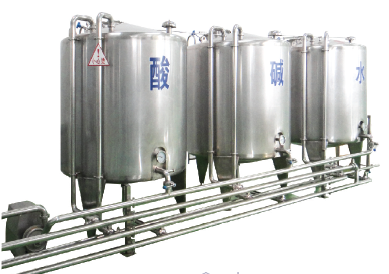

CIP Cleaning System

CIP 清洗系统

Product Features

CIP cleaning system provides automatic cleaning for tanks, pipelines, and processing equipment without disassembly.

It improves hygiene, reduces downtime, and supports food-grade sanitation requirements by controlling temperature, flow, and cleaning chemicals.

Inverse Sterilizer Machine

倒瓶杀菌机

Product Features

It is mainly used for sterilizing PET bottle mouth and inner cap surface, especially for hot-filled beverages.

The system usually includes conveyor chain, bottle reversing chain system, reversing guiding rod, and bottle repositioning unit.

It uses internal thermal medium to disinfect bottle mouth and caps without additional heat sources, saving energy and ensuring stable sterilization.

Production capacity: 5,000–36,000 bottles/hour. Sterilizing time: about 15–40 seconds.

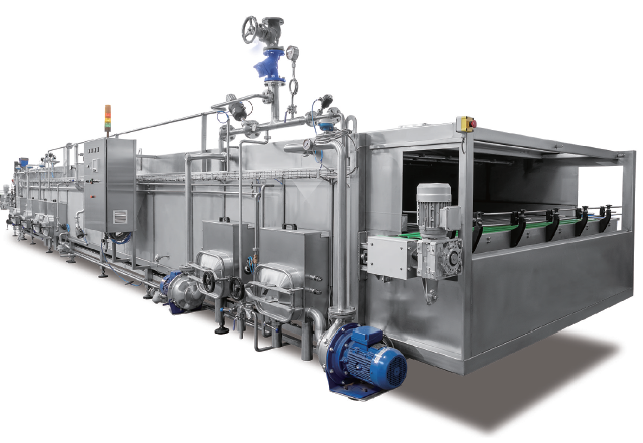

Spray Cooling Tunnel

喷淋冷却隧道

Product Features

The machine can reduce the temperature of hot filling drinks to 36–40℃.

It is used in heat-resistant PET bottle tea beverage, hot filling, PET bottle carbonated drink filling production line.

Productivity: 5,000–36,000 bottles/hour. Spray time: about 15–20 minutes.

TECHNICAL PARAMETERS

Item	PLJ-1000	PLJ-2000	PLJ-3000	PLJ-5000
Model	PLJ-1000	PLJ-2000	PLJ-3000	PLJ-5000
Max. sterilizing temperature (℃)	100	100	100	100
Width of sterilization transferring belt (mm)	1500	1500	1500	1500
Transferring belt speed (m/min)	110–553 (Stepless)	110–553 (Stepless)	110–553 (Stepless)	110–553 (Stepless)
Heating steam pressure (MPa)	0.4	0.4	0.4	0.4

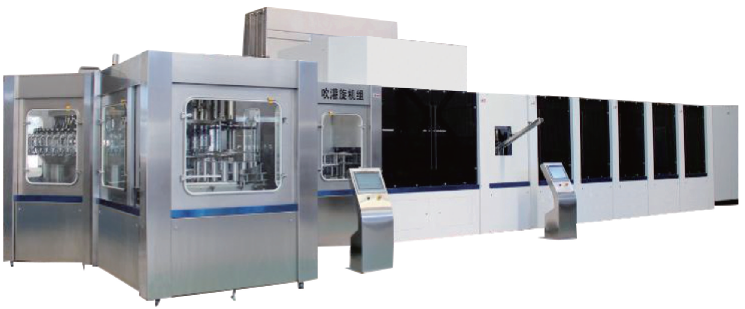

Blowing Filling Capping Combiblock Machine

吹灌旋一体设备

Product Features

This machine integrates three processes: blowing, filling, and capping, turning PET preforms into finished bottled products in one line.

With large-plate main structure, independent filling space, and clean air filtration, it provides a sanitary and safe operating environment.

Stable transmission reduces transfer errors and bottle jamming. Designed and manufactured to EU CE standards, ensuring quality and safety.

Suitable for PET bottles of various shapes, widely used for pure water, mineral water, tea, juice, milk drinks, energy drinks, and pulp beverages.

TECHNICAL PARAMETERS

Item	6-24-6	8-32-8	10-40-10	12-50-12	14-60-15	16-70-16	20-80-18
Blowing Molds (Pcs)	6	8	10	12	14	16	20
Filling Heads (Pcs)	24	32	40	50	60	70	80
Capping Heads (Pcs)	6	8	10	12	15	16	18
Production Capacity (BPH)	12000	16000	20000	24000	30000	36000	42000

Ultra Clean (Medium Temperature) Filling Production Line

超洁净（中温）灌装生产线

Product Features

Applicable product: juice, NFC freshly squeezed juice, tea, protein drinks, etc.
Applicable container: PET bottle.
Filling principle: gravity filling, micro negative pressure filling, weighing filling, flow meter filling.
Filling temperature: 68~72℃, 4~6℃.
Production capacity: 6000~36000 BPH.

3-18L Large Bottle Water Washing, Filling, Capping 3-in-1 Monobloc (Linear Type)

大瓶水（3-18L）冲洗、灌装、封口三合一机（直线式）

Product Features

This production line adopts advanced conveying and automation technology to achieve fully automatic bottle washing, filling, and capping with high stability and efficiency.

Most electrical parts use high-quality components, and all liquid-contact parts are made of stainless steel for hygiene, durability, and low failure rate.

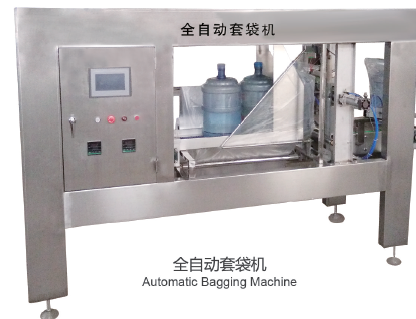

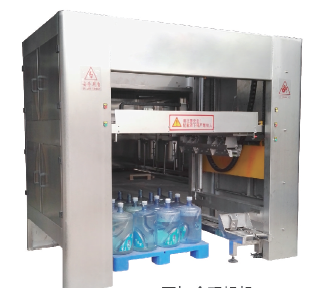

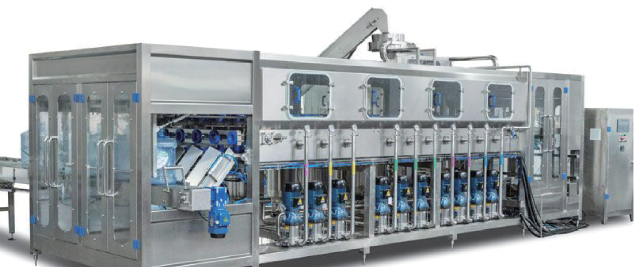

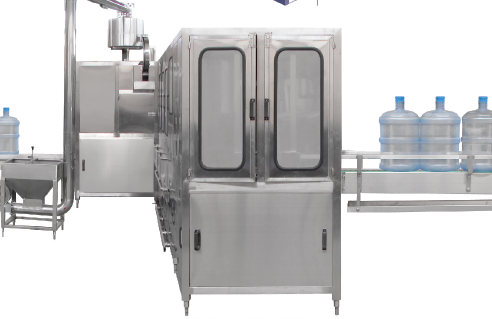

QGF Series 3 / 5 Gallon Barrel Water Filling Line

QGF 系列全自动桶装水灌装线

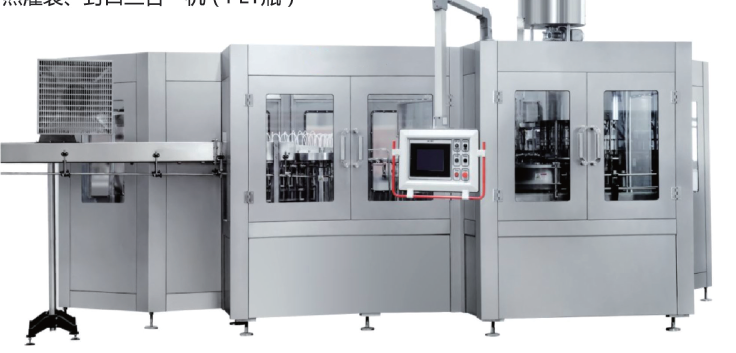

Washing, Hot Filling, Capping 3-in-1 Monobloc (PET Bottle)

冲洗、热灌装、封口三合一机（PET瓶）

Using Range

Products: fruit juice, tea drinks, energy drinks, etc.
Volume: 330–4000 ml.
Production capacity: 3000–36000 BPH (500 ml).
Bottle neck: 28 mm / 38 mm.
Filling method: pressure filling.
Filling temperature: 85–90°C.

Pulp Filling 3-in-1 Monobloc

果肉灌装三合一机

Using Range

Products: fruit, juice, tea drinks, energy drinks, etc.
Volume: 330–4000 ml.
Production capacity: 3000–36000 BPH (500 ml).
Dia. of bottle neck: 28 mm / 38 mm.
Filling method: gravity filling.
Filling temperature: 85–90°C.

Three / Four Screw Cap

Aluminum Screw Cap

Crown Cap

Washing, Hot Filling, Capping 3-in-1 Monobloc (Glass Bottle)

冲洗、热灌装、封口三合一机（玻璃瓶）

Using Range

Products: fruit juices, coffee drinks, protein drinks, etc.
Volume: 100–1000 ml.
Production capacity: 5000–36000 BPH (500 ml).
Filling method: pressure filling.
Filling temperature: 85–90°C.

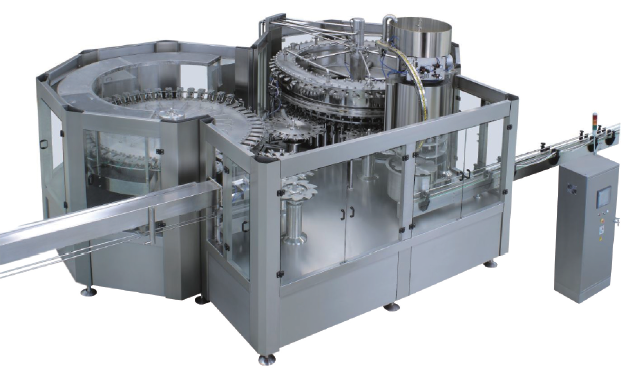

Washing, Carbonated & Beer Filling, Capping 3-in-1 Monobloc

冲洗、汽水/啤酒灌装、封口三合一机

Using Range

Product: carbonated soft drink.
Volume: 330–4000 ml.
Production capacity: 3000–36000 BPH (500 ml).
Bottle neck: 28 mm / 38 mm.
Filling method: counter-pressure filling.
Filling temperature: 0–4°C.

Using Range

Products: fruit juices, coffee drinks, protein drinks.
Volume: 150–500 ml.
Production capacity: 9000–30000 cans/h.
Can type: 200 / 202 / 206 / 209.
Filling method: gravity filling.
Filling temperature: 85–90°C.

Non-carbonated Tea, Juice, Protein Beverage Cans Filling And Packing Production Line

不含气茶、果汁、蛋白饮料易拉罐灌装包装生产线

Using Range

Product: carbonated soft drink.
Volume: 150–500 ml.
Production capacity: 9000–30000 cans/h.
Can type: 200 / 202 / 206 / 209.
Filling method: counter-pressure filling.
Filling temperature: 0–4°C.

Carbonated Soft Drinks Cans Filling, Capping Integrated Machine

易拉罐含气饮料灌装、封盖二合一机

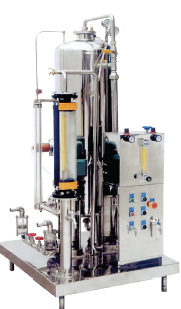

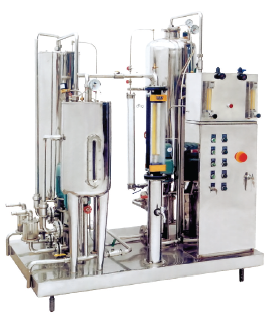

Drinks Mixer

饮料混合机

Product Features

Drink mixer adopts special mixed gas and liquid injector and the technique of vacuum deoxidation, drink mixer blends water, syrup and CO₂ together. The mixing precision is high and the CO₂ is fully mixed.

The mixing proportion between water and syrup is seriously controlled by micro metering device. It is equipped with CO₂ accuracy pressure control, so that the liquid level is always stable.

The alarm device for low pressure and low liquid level ensures the quality of its production. The machine obtains advantages of high reliability, high efficiency, high grade of automation and easy operation.

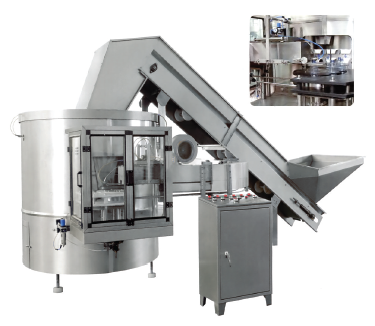

Unscramble Bottle Machine

理瓶机

Product Features

Unscramble the plastic bottles, then transfer them to the conveyor in correct direction and feed them into other equipment (such as rinsing and filling).

It reduces labor intensity, improves productivity, and helps avoid secondary contamination caused by hand contact with PET bottles.

Technical Parameters

Model	PLP-200A
Production capacity	8000 bottles/h (500ml)
Bottle type	Round or square shaped bottle
Bottle diameter (mm)	Φ50–Φ90
Height (mm)	150–310
Total power (kW)	3.6
Air source pressure (MPa)	5
Overall size L×W×H (mm)	2300×2210×2300
Total weight (kg)	3500

Code Printer

喷码机

Product Features

Industrial coding printer for production lines, suitable for printing batch code, date code, and traceability information on various packaging materials.

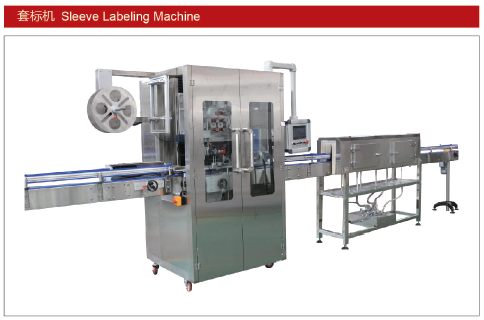

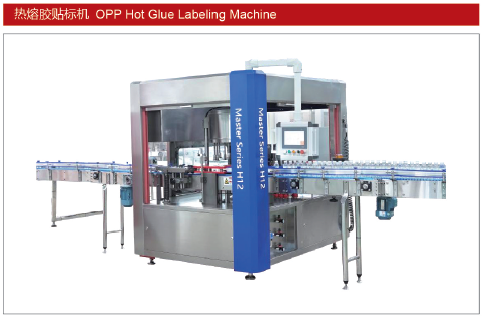

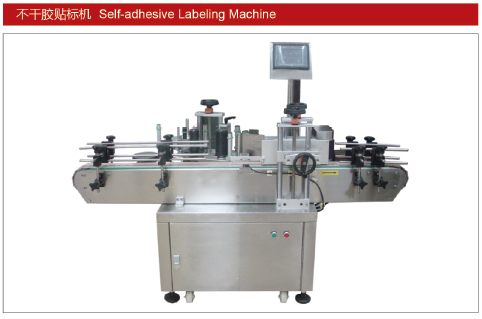

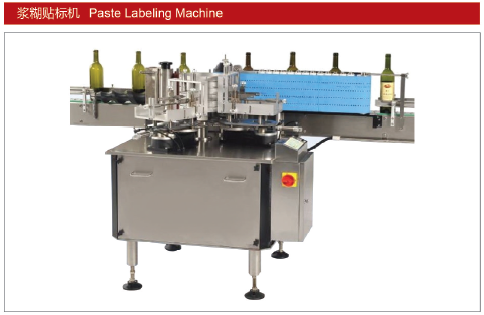

Labeling Machine

标签机

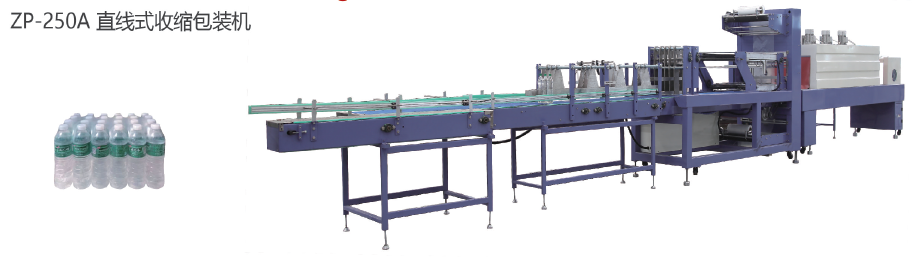

ZP-250A Linear Shrink Wrapping Machine

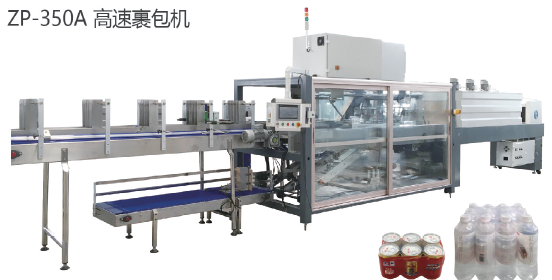

ZP-350A High Speed Shrink Wrapping Machine

Technical Parameters

Item	ZP-250A	ZP-350A
Overall dimensions (mm)	L12000×W1100×H2100	L12000×W1100×H2100
Machine weight (kg)	2000	2500
Packing speed (pcs/min)	15–20	25–30
Machine power (kW)	30	45

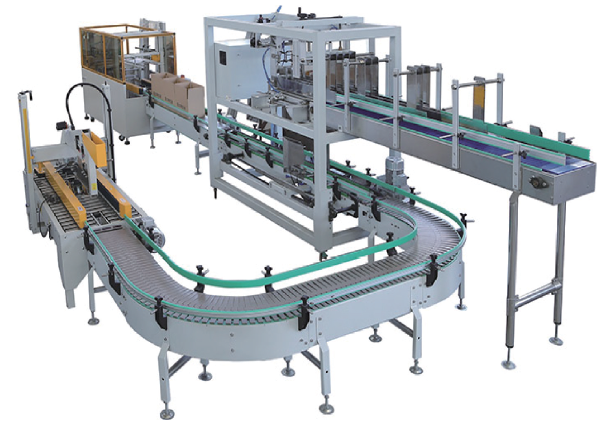

Carton Packaging Machine

纸箱包装机

本机采用落差式装箱，为瓶装类产品自动装箱设计，机器快速、稳定，简单，兼容性强适合不同规格不同排列产品使用。本机适用于矿泉水、饮料、啤酒、白酒、输液药瓶。

Product Features

This machine adopts drop type packing, and is especially designed for automatic packing of bottle products.

The machine is fast, stable, simple and compatible with different specifications and different arrangement products.

This machine is suitable for mineral water, beverage, beer, liquor, infusion medicine bottle.

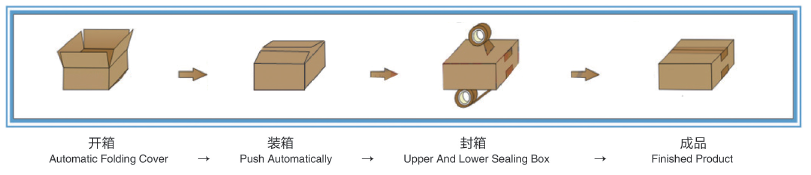

The Operation Process Of This Carton Packaging Machine Is As Follows:

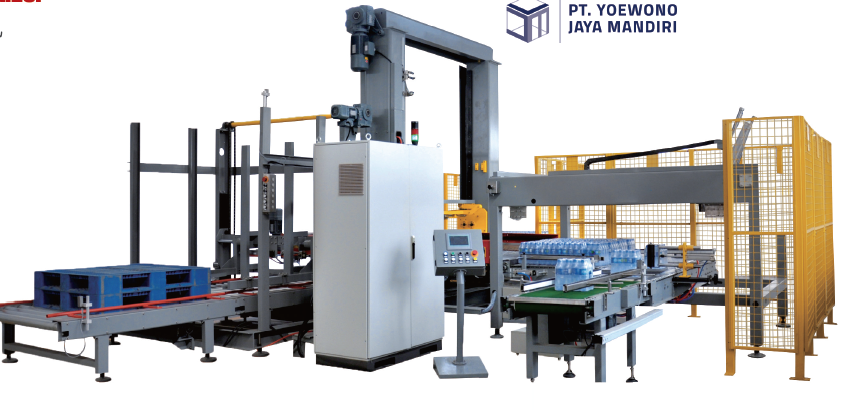

Palletizer

码垛机

产品特点

采用侧进箱方式，占地面积小，简化码垛机前的输送系统，整机比机器人码垛总成本节省30%以上。
低位码垛式，业界先进逐层式码垛设计理念，结构更先进，动作更轻便平稳，功耗也较小。
采用PLC程序控制，及变频调速，纸箱输送、排序、堆垛、卸垛板、夹紧输出等可自动化实现。
整机安全性极高及强大的诊断功能，多项安全设计及故障即时显示功能，保障人身安全，维修的快捷和简单。
堆垛方式的调整方便、简单，可在人机界面上进行，故障无需更换堆垛零件即可完成几种堆垛方式。
可实现纸箱码垛或收缩膜包装产品的码垛。

Product Features

The side box mode is adopted, the area is small, the conveying system in front of the palletizer is simplified, and the total cost of the whole machine is more than 30% less than that of the robot palletizing.
Low-position palletizing, the industry advanced layer-by-layer palletizing design concept, more advanced structure, lighter and more stable action, less power consumption.
Adopting PLC program control and frequency conversion speed regulation, carton transportation, sorting, stacking, unloading pallet, solid stack output can be realized automatically.
The machine has extremely high safety and powerful diagnosis function, a number of safety design and fault real-time display function, to ensure personal safety, fast and simple maintenance.
The adjustment of the stacking mode is convenient and simple, and can be carried out on the man-machine interface. Several stacking methods can be completed without replacing stacking parts.
It can realize the palletizing of carton palletizing or shrink film packing products.

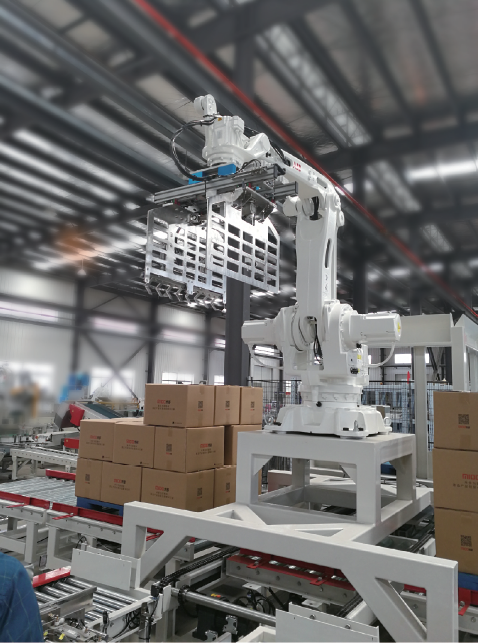

Robot Palletizer

机器人码垛机

Product Features

Touch screen operation is used to realize man-machine dialogue, which can display the production speed, fault cause and location, and has a high degree of automation. PLC can be programmed to control the sorting and stacking layers of cartons, pallet supply and discharge.
The adjustment of the stacking method is convenient and simple, and can be carried out on the touch screen.
The carton supply system adopts brake motor control to ensure that cartons are transported in predetermined positions.
The pallet warehouse has a large capacity and can accommodate 8-10 empty pallets, allowing automatic pallet supply.

技术参数 TECHNICAL PARAMETERS

Model	ZPMD-05
Power	380V, 50/60Hz, 12KW
Palletizing height	below 2000mm, can also be customized
Payload	80-700kg (select the appropriate model of robot)
Applicable product	products packed in cartons, plastic frames, bags, plastic films, and barrels
Palletizing speed	10-40 cartons/min; 10-40 beats/min
Applicable pallet	customizable
Crawling mode	single package/multiple package
Using air source	6-7kg
Working radius	800-3150mm

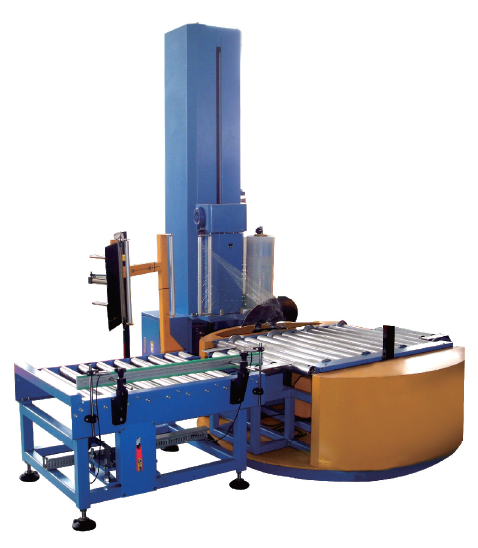

Online Winding Machine

在线式缠绕机

Product Features

The membrane frame is a pure cast aluminum membrane frame, which is light and stable. Adopting wear-resistant rollers for long service life. Film frame dynamic pre-stretching mechanism, pre-stretching can reach 250%. The film frame ascending and descending speed and film feeding speed can be adjusted. The number of top and bottom windings is controlled separately.
Membrane system follow-up mechanism, a pull can be. Lifting column is double chain structure, stable and reliable.
Just press the automatic operation button to complete the entire packaging process, and switch automatically and manually at any time. PLC is programmable control, and the number of winding layers, over-the-top height, and reinforcement layers can be set directly on the panel. Photoelectric switch automatically senses the height of goods. Select electrical control components for high reliability.

技术参数 TECHNICAL PARAMETERS

Wrapping specifications	(500-1200)×(500-1200)mm
Packaging height	1800mm
Turntable size	1800×625mm
Turntable speed	0~15rpm
Membrane frame mechanism	pre-tensioning mechanism
Packaging material	LLDPE

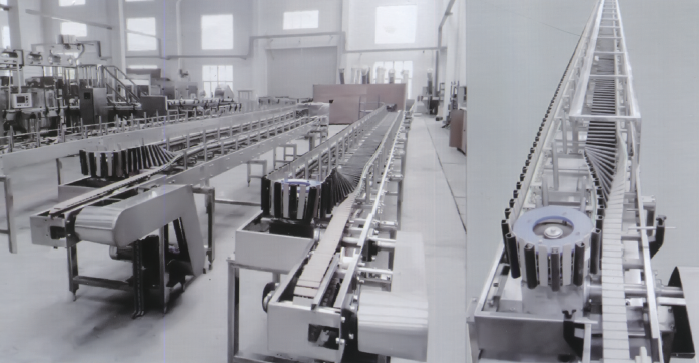

Bottles Conveying Belt

实瓶输送

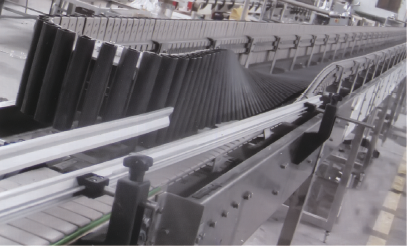

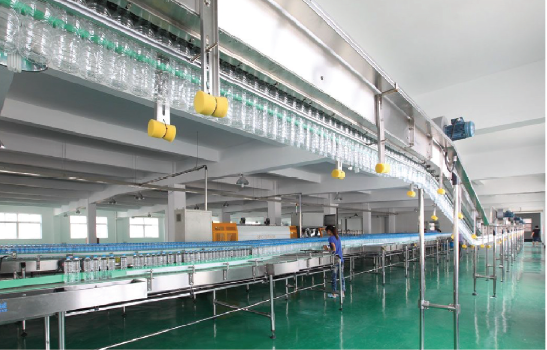

PET Empty Bottles Air Conveyor

PET空瓶气流输送线

Product Features

This conveyor line, using the airflow generated by the fan on the air conveyor, is able to flexibly make a turn, climb and decline. With various air opening, wind power is more focused, and wind pressure is more stable. The guardrail controlled by cylinder is degreed into large, middle and small, it is labor-saving while changing bottle type. Power of fan is 2.2-3kw, and airflow rate is 2500m3/h. At the same time when PLC controls fan transducer, it can automatically change input air and wind pressure to reach the control of conveying speed, and reduce blocking bottles and scratching.
